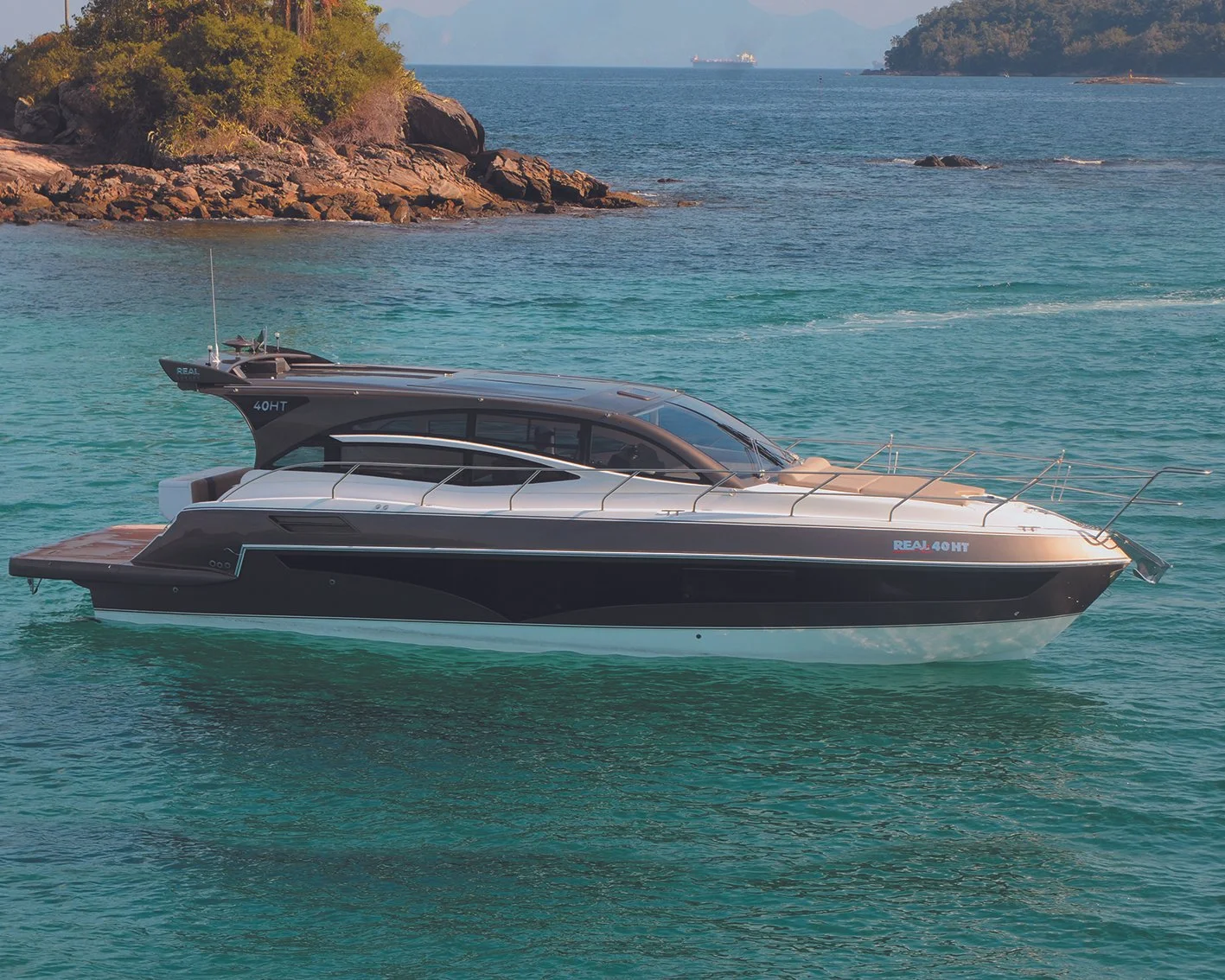

REAL 40 hT
The Real 40 HT Luxury blends sportiness, refinement, and comfort seamlessly. Featuring the largest hard top in its category, it provides a unique and enjoyable navigation experience. Excellent visibility and protection ensure safe and pleasant journeys. This vessel is designed for those who seek unforgettable moments at sea with elegance and sophistication. The Real 40 HT Luxury stands out with its superior design and functionality, making it an exceptional choice in the luxury nautical market. Experience the true pleasure of being on board with this outstanding model.
GALLERY
SPECIFICATIONS
Total Length: 12.31 m / 40.37 ft
Beam: 3,70 m / 12.14 ft
Air Draft: 2,68 m / 8.79 ft
Full Load Draft: 0,68 m / 2.23 ft
Weight with Engine: 8.500 Kg / 18,739 lbs
Maximum Engine Power: 800 HP
Minimum Engine Power: 540 HP
Load Capacity: 16 Passengers (70 Kg /154.32 lbs Per Person)
Fuel Tank: 700 L / 185 gal
Water Tank: 400 L / 106 gal
DESCRIPTIVE MEMORANDUM
BASIC KIT
MATERIALS AND CONSTRUCTION TECHNIQUES:
Hull and deck with custom painting;
Sandwich composite with high-performance resin and divinycell;
Hardtop lamination and various parts by infusion;
Thermally and acoustically isolated engine compartment, being watertight;
Basements coated with gel coat;
External fuel and water filling caps;
03 Navigation lights with electrical harness;
Complete electrical harness, except optional electrical/electronic;
01 Water drainage outlet;
External finishing strip in PVC and stainless steel;
06 Stainless steel mooring cleats;
LED floor lighting.
OWNER'S CABIN (BOW):
King Size Double Bed with backrest;
Direct and indirect LED lighting;
04 Suspended cabinets on the sides;
Mirror;
02 Large fixed windows;
01 Skylight in the ceiling;
110v sockets (Optional) and USB.
SALON
TO STARBOARD:
Dinette with center table reversible into a single bed;
Direct and indirect LED lighting;
03 Suspended cabinets;
01 Large fixed window;
USB sockets;
Skylight in the ceiling, for natural lighting.
TO PORT:
Kitchen with countertop, microwave (Optional), minibar (Optional), wine cellar (Optional), and cabinet for circuit breakers;
01 large fixed window;
110v sockets (Optional).
HEAD/SHOWER - TO PORT:
01 Large fixed window (Optional opening window);
Shower in the ceiling;
Glass box;
Built-in toilet with lid;
Mirrors with 02 upper cabinets;
Trash can;
Countertop with sink and 02 lower cabinets;
110v sockets (Optional).

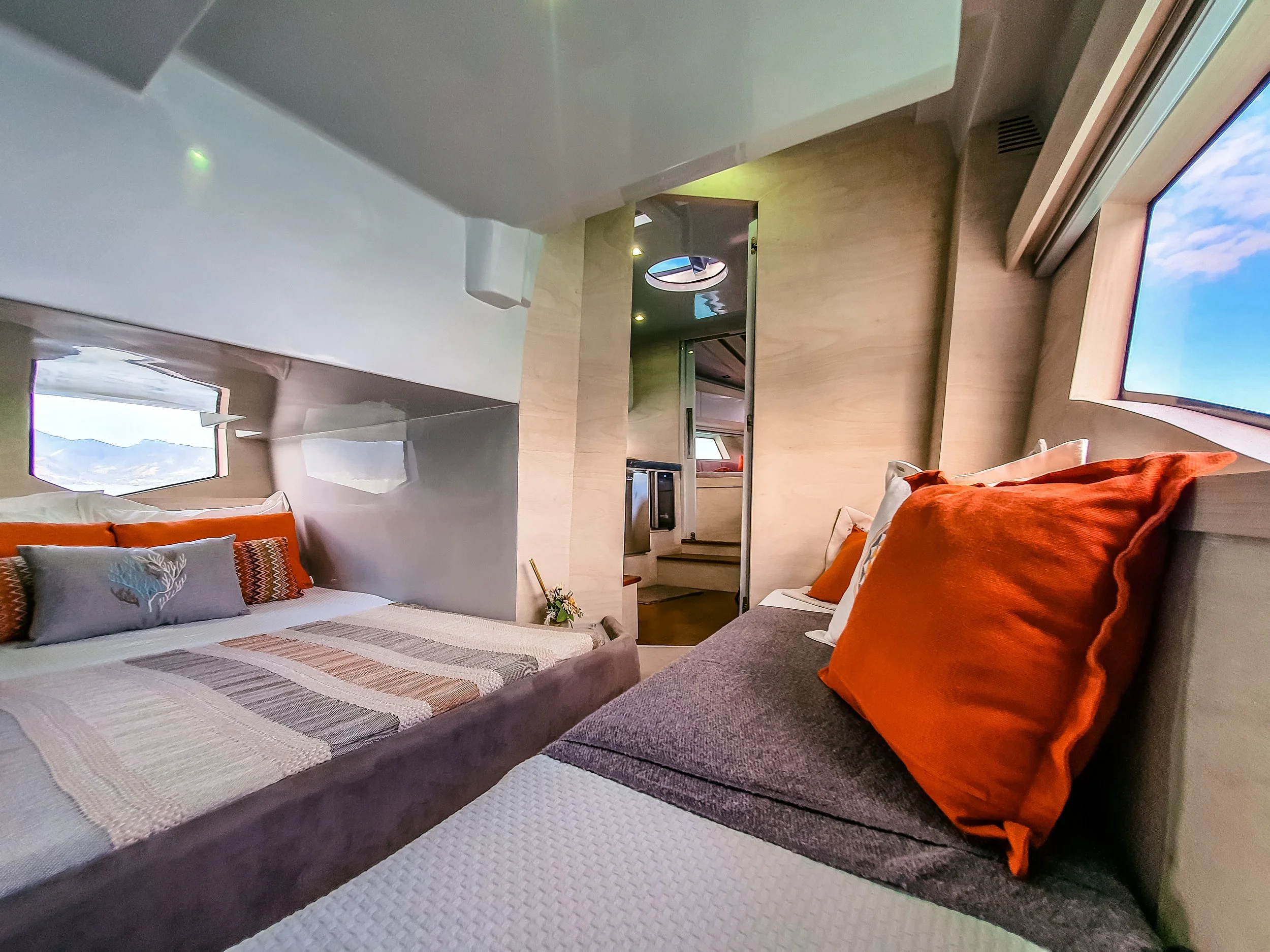

CABIN (MIDSHIP):
01 Single bed;
01 Large double bed;
02 Large fixed windows;
110v sockets (Optional) and USB.
DECK
BOW:
Sun-bed with reclining backrest for 01 couple, with access to the bow through two wide lateral walkways;
Anchor box, cable, and chain, with extra space to store the fenders;
High stainless steel railings made of 30.48cm / 1" 1/4 tube.

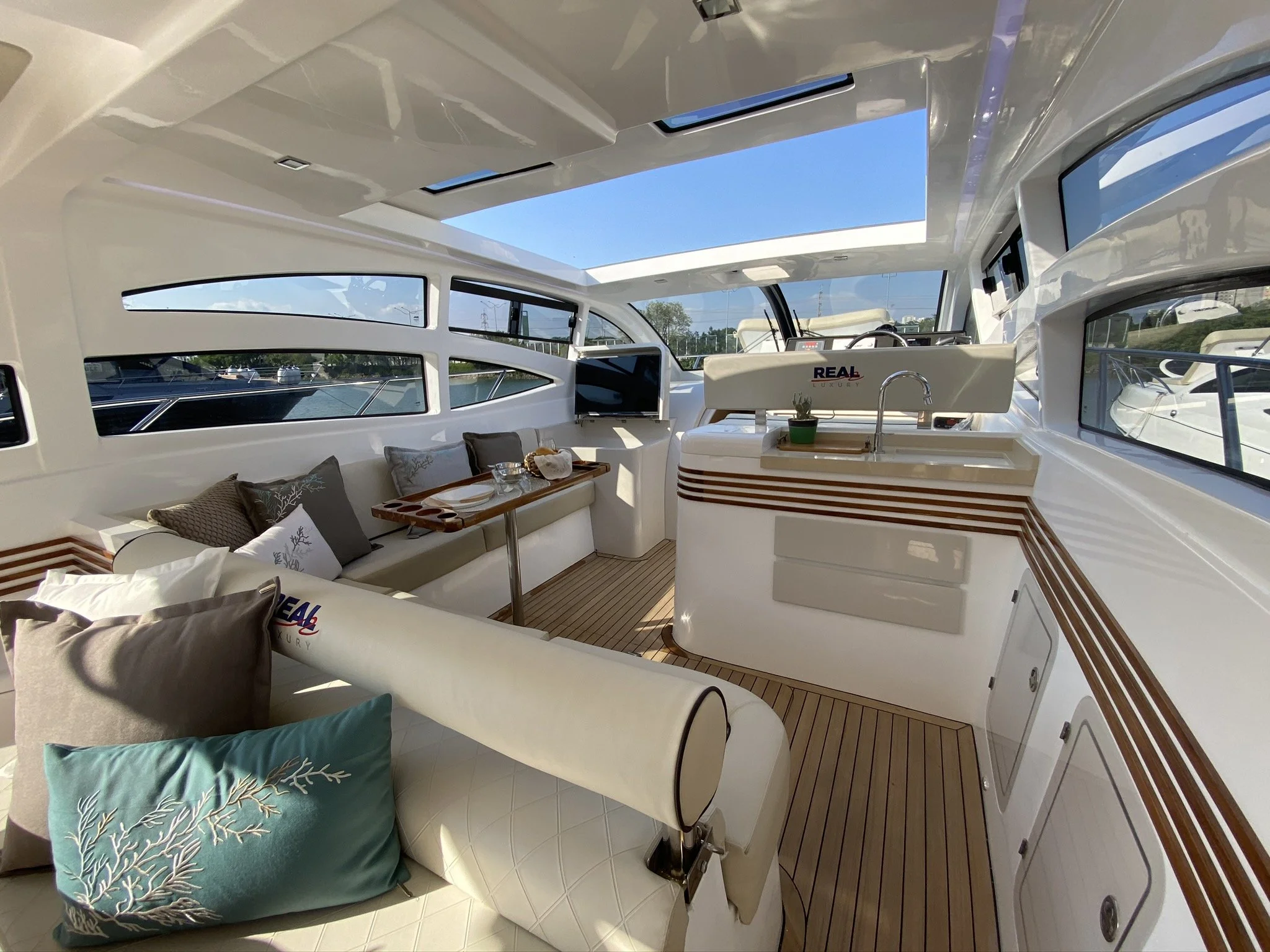

COCKPIT - PART 1 - TO PORT:
Furniture with internal dry bar with bottle holder;
TV (optional) fixed on the mobile's hinged lid;
"L" shaped sofa with storage under the seats;
Large teak mosaic table with cup holders and edges.
COCKPIT - PART 2 - TO STARBOARD:
Ergonomic panel for instruments and electronics, with bold design;
USB sockets on the panel;
Pilot and co-pilot seats with high and foldable seats that provide 3 options for navigating;
02 Footrest bases at the bottom of the panel, to provide more versatility in piloting;
Tilting window for the pilot;
Cooler next to the pilot and storage space;
Furniture with cooler, 1-burner induction stove (optional), sink, drawer, and drawer minibar (optional);
On the side, 02 acrylic bars and 02 built-in cabinets.
COCKPIT - PART 3:
Option of acrylic or glass door;
Option of integrated area with retractable backrest roll;
02 Parallel seats for 8 people, with storage space under the seats;
02 Teak mosaic tables that have articulation to join and form a single larger table;
03 Additional pieces to transform the seats into a stern sunbed;
01 Champagne bucket with support for open bottle;
01 General keys cabinet;
01 Built-in trash can with door;
Access to the engine room with easy access cover, with shock absorbers;
In the engine room, a compartment for objects.
STERN:
Gourmet furniture with barbecue (Optional electric or charcoal), sink, and cooler;
Large stern platform;
02 anchor boxes, cable, and objects;
01 4-step ladder with cover.
HARDTOP:
Direct and indirect LED lighting;
Perforated acrylic ceiling for natural lighting and design;
Electric roof operation;
Skylight in the ceiling, near the pilot for better ventilation;
Sporty design spoiler;
"40" logo with LED activation on the sides;
Windshield wipers with speed adjustment.
BASIC ASSEMBLY:
Water drainage system with bilge pumps and automatics;
01 Pressurization pump with pressure switch;
Complete hydraulic and electrical system, including 01 180-amp service battery;
Compass;
Automatic fire extinguishers - inboard version;
Coded wiring with thermal protection (circuit breakers).
